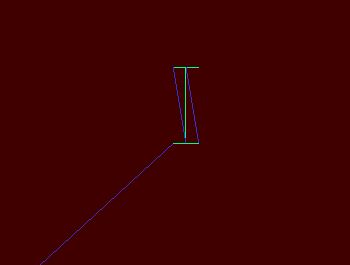

This program shows the cutting on centerline of a simple letter "I"

Hardware: CANDCNC Controls (Bladerunner Dragon Cut)

Software: Mach 3, SheetCam TNG

N0000 (Filename: sample.tap)
N0010 (Post processor: MP1000-THC - scriberPertneer.scpost)
N0020 (Date: 1/17/2012)
N0030 G20 (Units: Inches)
N0040 G53 G90 G40
N0050 F1
N0060 (Part: Sample)
N0070 (Process: No Offset, Text, T10: Plasma, 10 Ga, 0.065 kerf)
N0080 G00 X8.0000 Y7.0000
N0090 G28.1 Z0.12 F5.0
N0100 G92 Z0.0
N0110 G00 Z0.0430
N0120 G92 Z0.0
N0130 G00 Z0.1500
N0140 M03
N0150 G04 P0.1
N0160 G01 Z0.0600 F3.937
N0170 X8.3333 F190
N0180 M05
N0190 G00 Z1.0000
N0200 X8.1667 Y8.0000
N0210 Z0.1500
N0220 G28.1 Z0.12 F5.0
N0230 G92 Z0.0
N0240 G00 Z0.0430
N0250 G92 Z0.0
N0260 G00 Z0.1500
N0270 M03
N0280 G04 P0.1
N0290 G01 Z0.0600 F3.937
N0300 Y7.0000 F190
N0310 M05
N0320 G00 Z1.0000
N0330 X8.0000 Y8.0000
N0340 Z0.1500
N0350 G28.1 Z0.12 F5.0
N0360 G92 Z0.0
N0370 G00 Z0.0430
N0380 G92 Z0.0
N0390 G00 Z0.1500
N0400 M03
N0410 G04 P0.1
N0420 G01 Z0.0600 F3.937
N0430 X8.3333 F190
N0440 M05
N0450 G00 Z1.0000
N0460 X0.0000 Y0.0000
N0470 M05 M30

Preperation G-Codes
Torch off end of program
Torch off
Feed along cut path at specified feed rate
Z rapid move to pierce height
Pierce Dwell Time
Torch On
Switch Offset Amount of your machine
Zero out the readout in Mach 3
Reference Axis
Rapid Move
Process name used in SheetCam
Name of Part File from SheetCam
Feed Rate
Unit of file. This case is inches
Date File was Generated
Post Processor Used in the generation of the code within Sheetcam
Program Name
